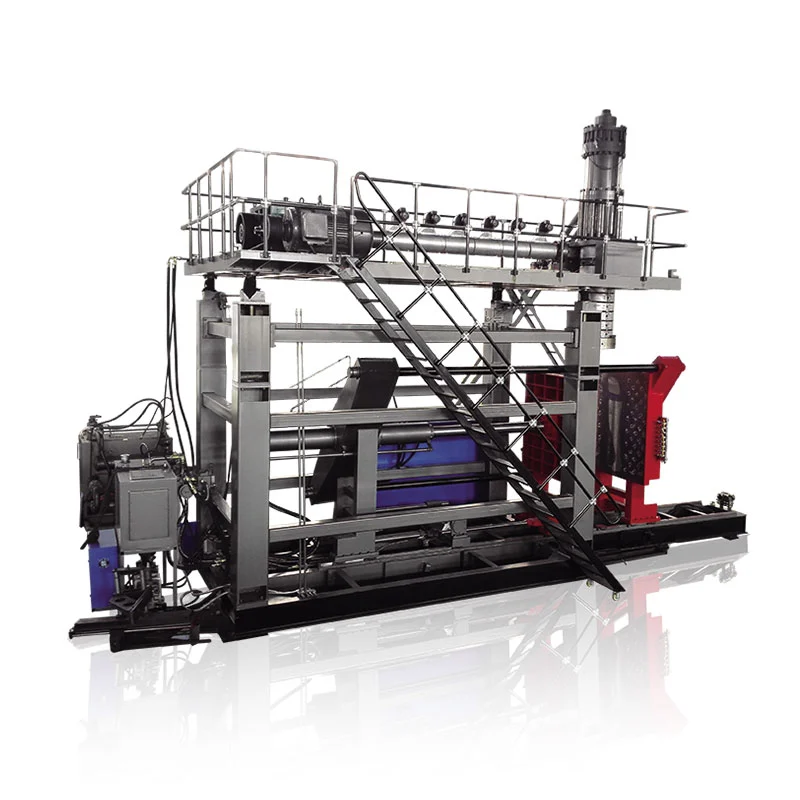

1000LL IBC Water Tank Tanks Actumled Orgged masini

Model:KGB1000L- IBC

Poto masani le malosi ma le mautu o le kgb1000l IBC Water Tanks Actumled Orgy System, o loʻo faʻaalia ai se aofaʻiga atoa ma faʻalauiloa. O le Diagonal Soning Bie Rods ma Centrand e tolu-Cylinder Clompting e oo i le mafaufau loloto i luga o le ata, manogi o le amio lelei.

Voluma: 1000lMamafa: 55t

Auina atu Su'esu'ega

Fa'amatalaga o oloa Specification Application

O lenei 1000l IBC Water tane faʻaputuputu e feulateina le masini tuufaatasiga a le tekinolosi Lelei tele mo le fausiaina o le malosi-agavaʻa, e aofia ai ma le tane tane ank slapy masini masini meafaigaluega, o lenei masini-lapoʻa taʻavale tane, ma sili atu. Faʻafesoʻotaʻi matou i aso nei mo se tusitusiga faʻapipiʻi ma saili le matou tauvaga vai tane tane o le tau.

Foliga ma lelei

O le aofaʻiga o meafaigaluega e mafai ona oʻo atu i le sili atu ma le 55 tone, faʻaititia lelei le gatete ma masini e sui ai, ma faʻaleleia le faʻaogaina saʻo ma le mautu.
● O le Diagonal Sue Lie Rods ma Centrand e tolu-Cylinder Gued Clamping, o le auivi e sili atu le atuatuvale ma e le faigofie ona suia
● O le tele o le tele o le vaega o loʻo maua ai le faʻaititia o le gaosiaina o tau ma faʻaleleia oloa o loʻo tumau
● E fetaui lelei mo le gaosiga o oloa palasitika tele pei o vai vai, teuina tane, vailaʻau vailaʻau, ma isi.

1000L IBC water tanks accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS、HMWHDPE..	Fixed open- closing type Specialized Machine Series
Serial number	Material PE、PP、ABS、HMWHDPE..	Machine model:KGS1000L-IBC
Specifications
1	Max container capacity	1000 L
2	Output(dry Cycle)	150 L
3	Machine Dimension(L×W×H)	9.5 M x 5.1 M x 6.5 M
4	Machine weight	55 T
Clamping Unit
1	Clamping force	1000 KN
2	Mold platen size(W×H)	1800 MM x 1600 MM
3	Platen opening stroke	1150 MM - 2700 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1600 MM x 1500 MM
6	Mold thickness	1200 MM - 1400 MM
Power
1	Servo oil pump motor power	25 KW
2	Servopump displacement	250 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	2 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	110 KW - 150 KW
Extruder unit
1	Screw diameter	100 MM x 2 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	180 Kg/hr x 2 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90 KW x 2 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	450 MM
4	Accumulator capacity	45 L
5	(PE)Accumulator weight	33 KG
