250l faʻaputuputu o loʻo feula le masini

Model:KGB120E

O lenei mea faʻatulagaina o le tatalaina ma le tapunia o le masini gaosi, o le faʻaalia faʻalua o le tosoina o le cynchronous clomping ma suauu cylinder tuusaʻo lokaina ma lelei. Faʻatupeina i le Hydracrac Servoc system mo le vave tali ma le malosi o le malosi, o lenei 250l faʻaputuputu palting stary o mea eseese o oloa, mai ni pusa tetele i le tele o oloa.

Voluma: 250lMamafa: 28t

Auina atu Su'esu'ega

Fa'amatalaga o oloa Specification Application

O le Tagavai KgB120E faʻataʻitaʻiga, o le faʻateleina o le faʻaputuga o le ulu o loʻo oso ai masini, aofia ai se moog 100 mafiafia controller, robot lima, ma le fusuaga pito i lalo faiga, faʻalauteleina ma le lelei ma le lelei. O lenei vaʻaiga 250l faʻaputuputu o loʻo feula le masini e lelei Mo talosaga eseese, e aofia ai le vailaau le palau ua oso ai masini tali, palasitika pallet e feosofi mai masini gaosi o le tino, vai palasitika Tank Splass Forlding Food Actives Action, ma le gaosiga o 200-220l lua-mama parrels, car tane, auto vaega, auala feai, vailaau Meataʻalo, taʻoto talo, nofoa, laulau, pallets, vaʻa ma sili atu.

Foliga ma lelei

Faaaogaina mo gaosi oloa i pisinisi eseese. Pe o le tele o agavaʻa agavaʻa-mautu pusa i totonu o vailaʻau faitiga, afifiina o fualaʻau ma le faʻatonutonuina o meaʻai i aso taʻitasi.
O le fafaga o gaioiga o loʻo faʻaaogaina le tipiina o le tekonolosi-tekonolosi ma e sili ona lelei e faʻavae i luga o le maualuga-mafai ona gaosia uiga o le 120e palu masini. Faʻapea o le faʻatulagaina o le tafe fua faatatau ma le tufatufaina o mea mata e faʻamautinoa ai le mafiafia o le mafiafia o le tino i le taimi o le gaosia o le oloa, ma aveese ai le lelei o le fafagaina.

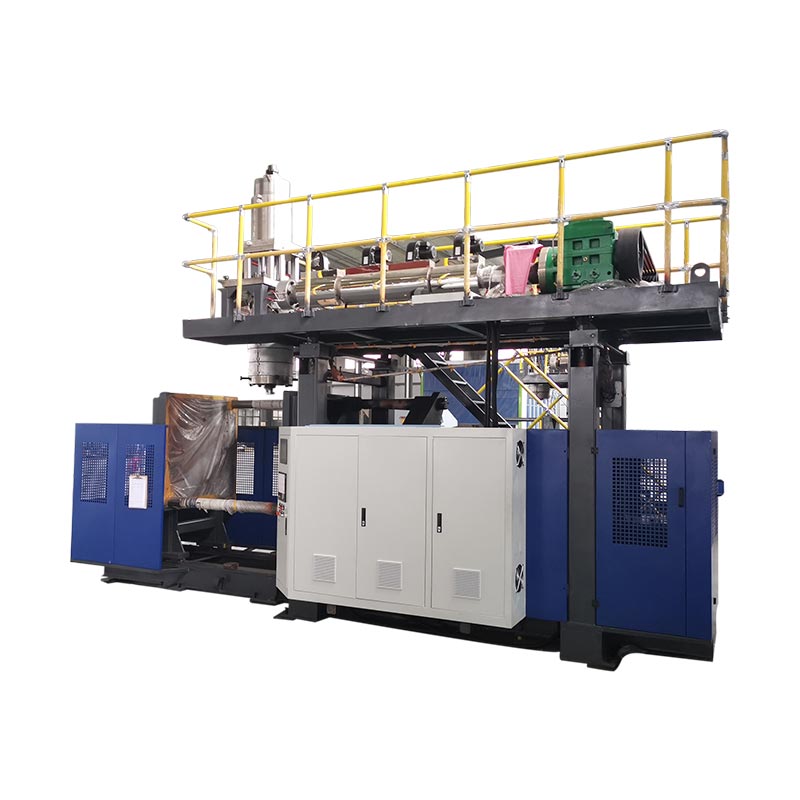

250L accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS...	Mold closing oil cylinder(single cylinder)
Serial number	Material PE、PP、ABS...	Machine model:KGB120E
Specifications
1	Max container capacity	250 L
2	Output(dry Cycle)	300 PC/HR

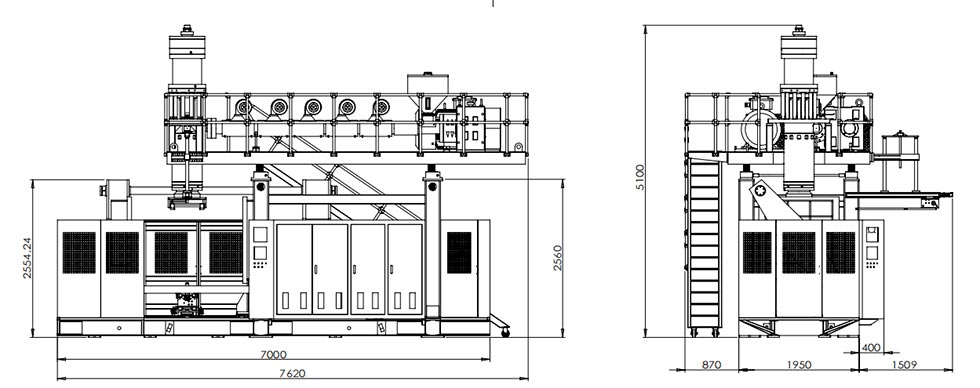

3	Machine Dimension(L×W×H)	7.6 M x 4.3 M x5.5 M
4	Machine weight	28 T
Clamping Unit
1	Clamping force	800 KN-1200 KN
2	Mold platen size(W×H)	1300 MM x 1400MM
3	Platen opening stroke	800 MM-1800 MM
4	Platen moving stroke	700 MM
5	Max mold size(W×H)	1100 MM x 1700 MM
6	Mold thickness	810 MM - 900 MM
Power
1	Servo oil pump motor power	37 KW
2	Servopump displacement	250 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1.8 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	80 KW -90 KW
Extruder unit
1	Screw diameter	120 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	250 Kg/hr-320 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90(110) KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	600(700) MM
4	Accumulator capacity	20(25) L
5	(PE)Accumulator weight	15(18) KG
